Oil collecting below the filter housing on a BMW M54 can look like a leaking oil pan, a failed VANOS oil line, or a general front-of-engine mess. The oil filter housing gasket is a frequent culprit, but the useful question is not which gasket usually fails. It is where the fresh oil actually starts. This guide helps you answer that before taking the engine apart. [1, 2]

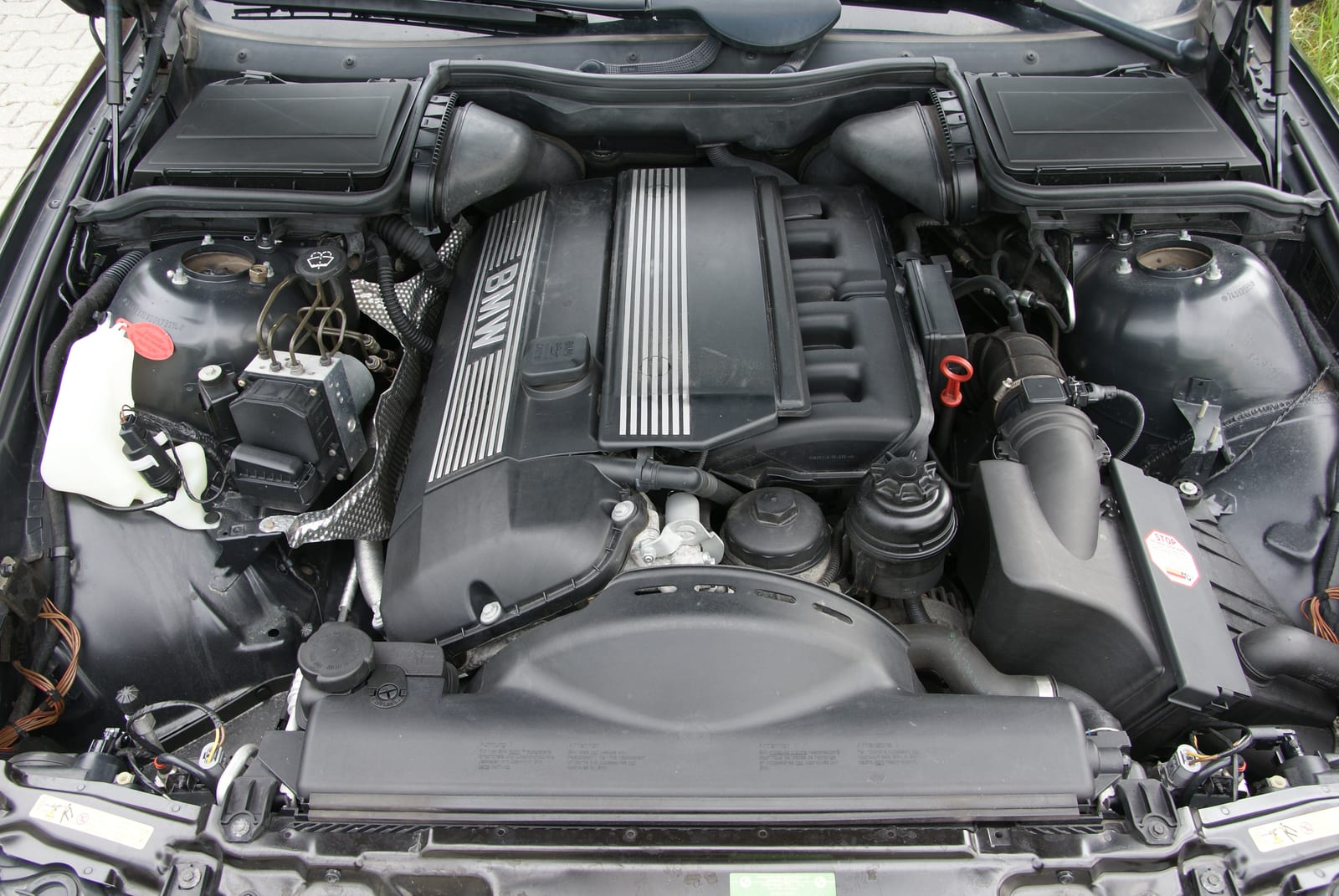

Scope: Naturally aspirated BMW M54 inline-six engines. BMW repair instruction 11 42 020 for the E46 330Ci M54 anchors the removal sequence. Applications FCP Euro lists for this job include E46 325i/330i, E39 525i/530i, E53 X5 3.0i, E83 X3 and E85 Z4. This article covers the M54 only. Confirm engine, VIN, production date, market and equipment. [1, 2]
Quick answer: A replaceable profile gasket seals the oil filter housing to the block. BMW's service procedure instructs technicians to remove the housing, check the locating dowels, replace the seal and top up engine oil. If the housing-to-block seam is the highest confirmed wet point, the gasket is a strong suspect. Oil beginning at the VANOS feed line or a connection above the seam calls for a different diagnosis. [1, 2, 5]
Where the M54 oil filter housing leaks
The oil filter housing is a separate assembly bolted to the engine. Its shaped gasket seals the mating face against the block. The third-party parts catalog lists that gasket separately from the filter cover O-rings. They are not interchangeable fixes. BimmerWorld describes the gasket shrinking and hardening over time, and FCP Euro says the old gasket dries up and shrinks, but old residue alone cannot prove which joint is leaking today. [2, 3, 5]
Symptoms and look-alikes
| Observation | Possible source | Next check |
|---|---|---|
| Fresh oil at the housing-to-block seam | Profile gasket is plausible | Clean, run briefly if safe and recheck the seam |
| Wet VANOS oil feed line or banjo joint | Line or connection sealing rings | Trace the line and each joint independently |
| Oil below the housing near the alternator | Oil may have run down from higher up | Inspect the highest fresh oil first |
| Oil around the filter cap after service | Spill or cap-seal issue | Clean and inspect the cap O-rings separately |
| Oil on the lower engine or undertray | Could originate above the oil pan | Do not diagnose a pan gasket from the drip location |
| Oil on accessory belt or pulleys | Leak reaching rotating rubber components | Stop and inspect before driving; address contamination |
These are diagnostic possibilities, not proof of a particular failed component. BMW's procedure disconnects the oil-pressure switch connector and the VANOS oil line at the housing, and FCP Euro calls the VANOS line another common leak point, so those joints sit right beside the housing seam. [1, 2]
Diagnose the leak before buying parts
- Verify the engine. Record VIN, production month and M54 designation. Earlier E46 and E39 examples may use other engines. See Department 69's M52/M52TU/M54 identification guide.
- Check oil level and safety. Do not continue driving with an oil-pressure warning, substantial oil loss or a belt being contaminated by oil.
- Document and clean. Photograph existing residue, then clean accessible surfaces with the engine off and cool. Avoid soaking electrical connectors.
- Work from top to bottom. Check the filter cap, housing seam, oil-pressure switch, VANOS feed line and other components above the wet area.
- Look for fresh oil. If safe, run the engine briefly, shut it off and inspect with adequate lighting. A shop may use suitable fluorescent oil dye if the origin is unclear. Keep clear of moving belts and hot components.
- Repair the confirmed source. A wet housing seam supports replacing the profile gasket. A wet feed-line joint supports checking the line and its seals. More than one source may be present.
Related diagnostic: If whistling, unusual crankcase vacuum, rough idle or unexplained oil consumption accompany the leak, consult Department 69's M54 CCV diagnostic guide. A CCV symptom does not identify the location of an external oil leak.
BMW's oil filter housing removal procedure, explained
BMW TIS-derived repair instruction 11 42 020 for an E46 330Ci M54 provides the sequence. This overview is for planning and is not a replacement for the full vehicle-specific procedure. [1]
- Make room. BMW removes the intake-air housing and alternator. Depending on the installed equipment, the power-steering reservoir, power-steering pump or belt tensioner may need to be moved or removed. BMW marks some steps as conditional.
- Drain the housing back to the sump. BMW instructs loosening the filter cover so oil in the housing can return to the pan. Catch oil released when components are separated. The cited instruction does not mandate a complete oil change in every case.
- Disconnect the connections. BMW lists the oil-pressure-switch connector, an oil-temperature connector if fitted, and the VANOS oil-pressure line at the housing. Protect sealing surfaces and exposed electrical connections.
- Remove the housing. Remove the mounting screws and housing. Record bolt positions and avoid damaging mating surfaces. The third-party catalog example below shows that the mounting bolts are not all the same length.
- Inspect and reseal. BMW says to check the locating dowel sleeves for damage and correct position and replace the seal. Remove old gasket material carefully, keeping debris out of oil passages.
- Reassemble and verify. Use the correct BMW tightening data for the specific fasteners, restore connections and removed components, check engine-oil level and inspect for leaks.
Torque caution: The accessible two-page BMW removal instruction does not provide a complete mounting-bolt torque chart. Do not substitute generic M8 values, another engine's banjo-bolt specification or an unsupported torque figure. Look for the BMW tightening-torque section for the exact car and hardware. If you cannot find one, treat any figure as unconfirmed: FCP Euro's walkthrough says there is no torque spec for these bolts and tells installers to make them tight, which is a retailer's advice, not a BMW value. [1, 2]
Verified gasket part number and bolt-length caveat
For a May 2001 U.S.-market E46 325i sedan with the M54, the third-party lubrication-system parts catalog lists gasket 11 42 1 719 855, written without spaces as 11421719855. The same diagram lists three M8x55, two M8x70 and one M8x100 housing bolts (the catalog marks the M8x70 as discontinued by the factory). These details are tied to that catalog example, not a universal M54 bolt or parts list. Record fastener positions during removal. [3]
For a checked product example, FCP Euro lists a Genuine BMW gasket, OE number 11421719855, and also lists it in its E46 330Ci oil-filter-housing-gasket category. The part number matches the catalog example. Confirm your VIN and any current supersession before ordering. The retailer's general fitment list is not a substitute for VIN verification. [3, 4]
Inspect the VANOS oil line and sealing rings while access is open. BMW's repair procedure requires disconnecting the line, and FCP Euro's walkthrough renews the VANOS line's banjo bolt and crush washers during this job. Replace additional parts when their condition or a confirmed leak justifies it, not solely because they are nearby. [1, 2]
Mistakes worth avoiding
- Replacing the wrong seal: The filter cover O-rings, the housing gasket and the VANOS line's banjo-bolt washers are separate parts. [2, 3]
- Mixing housing bolts: The cited catalog example uses multiple lengths. Record locations before removal. [3]
- Missing damaged locating dowels: BMW explicitly calls for checking them on installation. [1]
- Guessing torque: Use the exact BMW tightening section rather than copying an internet-wide value. [1]
- Ignoring an oil-soaked belt: Inspect the belt and correct contamination before driving.
- Skipping a clean recheck: Verify fluid level and inspect after repair; a second leak can be hidden under the first.
Frequently asked questions
Can a housing-gasket leak look like an oil-pan leak?
Yes. Oil can travel down the engine. Clean the area and trace the highest fresh wet point before blaming the pan.
Must I drain all the oil to replace the housing gasket?
BMW's cited procedure says to loosen the filter cover to let housing oil return to the pan and to top up after reassembly. It does not, by itself, mandate a complete oil change. Follow the full procedure and contain any released oil. [1]
What is the M54 oil filter housing gasket part number?
For the verified May 2001 U.S. E46 325i M54 example, 11421719855. Confirm the exact VIN and current supersession. [3, 4]
What torque should I use on the housing bolts?
No universal figure is given here because the cited BMW removal instruction does not supply a complete tightening chart. Look for the BMW tightening section for the exact car and fastener. FCP Euro's walkthrough says there is no torque spec for these bolts, which is a retailer's statement, not a BMW value. [1, 2]
Should the VANOS oil line be replaced at the same time?
Inspect it while access is open. BMW's procedure disconnects the line, and FCP Euro's walkthrough renews its banjo bolt and crush washers during this job. Replace the line if its condition or a confirmed leak warrants it. [1, 2]
Does this procedure cover the E46 M3?
No. The E46 M3 uses the S54 engine, not the M54. Check its own repair instructions and hardware.
Sources and verification
- BMW TIS-derived repair instruction 11 42 020, page 1 and page 2. BMW-authored repair information mirrored by a third party; issue status 12/2007.
- FCP Euro M54 oil filter housing gasket and VANOS line walkthrough, December 14, 2020.
- Third-party E46 325i M54 USA May 2001 lubrication-system parts catalog (bmwfans.info).
- FCP Euro Genuine BMW gasket 11421719855 and E46 330Ci parts category.
- BimmerWorld Genuine BMW gasket 11421719855.
Technical disclaimer: This independent educational reference is not a replacement for current BMW factory repair information. Verify VIN, engine, production date, equipment, parts supersessions, fastener requirements, tightening procedures and safety instructions. Oil-pressure loss, hot components, moving belts and electrical connections can cause injury or engine damage. Work on your vehicle at your own risk.
