BMW N54 Common Torque Specifications:Complete DIY Engine Reference
The BMW N54 has been an enthusiast engine for long enough that many cars are now on their second or third round of the jobs that define ownership: spark plugs, valve covers, oil-filter-housing gaskets, oil-pan leaks and direct-injection service. The useful torque specifications are scattered across separate BMW repair sections, and several involve aluminum hardware or torque-angle procedures that should not be replaced with a guess.
This reference consolidates the most useful N54 engine torque specifications for routine maintenance and common repairs. Brakes, suspension, wheel bolts, engine mounts, transmissions, differentials and other chassis-specific hardware belong in the reference for the exact BMW chassis.
Affiliate disclosure: Some links are affiliate links. Department69 may earn a commission at no additional cost to you. Products are placed only where directly relevant. Confirm exact vehicle fitment before ordering.
Quick-reference BMW N54 torque specifications
| Component | Torque | Application / note |
|---|---|---|
| Engine oil drain plug | 25 Nm / 18.4 ft-lb | N54 M12x1.5. |
| Oil-filter cap | 25 Nm / 18.4 ft-lb | N54 oil-filter housing. |
| Spark plugs | 23 Nm / 17.0 ft-lb | BMW N54 spark-plug tool documentation. |
| Valve-cover bolts | 8.5 Nm / 75.2 in-lb | N54 M6 cylinder-head-cover fasteners. |
| Oil-filter housing to cylinder head | 22 Nm / 16.2 ft-lb | N54 M8 housing bolts. |
| Oil/water heat exchanger to housing | 16 Nm / 11.8 ft-lb | N54 M8x20. |
| Intake manifold to cylinder head | 15 Nm / 11.1 ft-lb | N54 M7x50 bolts and AM7 nuts. |
| High-pressure rail to cylinder head | 13 Nm / 9.6 ft-lb, tolerance ±2 Nm / ±1.5 ft-lb | N54/N53 M7x16. |
| High-pressure lines, rail to injectors | 25 Nm / 18.4 ft-lb | N54/N53 M12 connections. |
| High-pressure line, rail to pump | 30 Nm / 22.1 ft-lb, tolerance ±3 Nm / ±2.2 ft-lb | N54/N53 M14 connection. |
| Oil-pan bolts, M8x26 | 8 Nm / 70.8 in-lb + 90° | Aluminum bolts; replace. |
| Oil-pan bolts, M8x92 / M8x112 | 8 Nm / 70.8 in-lb + 180° | Aluminum bolts; replace. |
What BMWs does this N54 guide apply to?

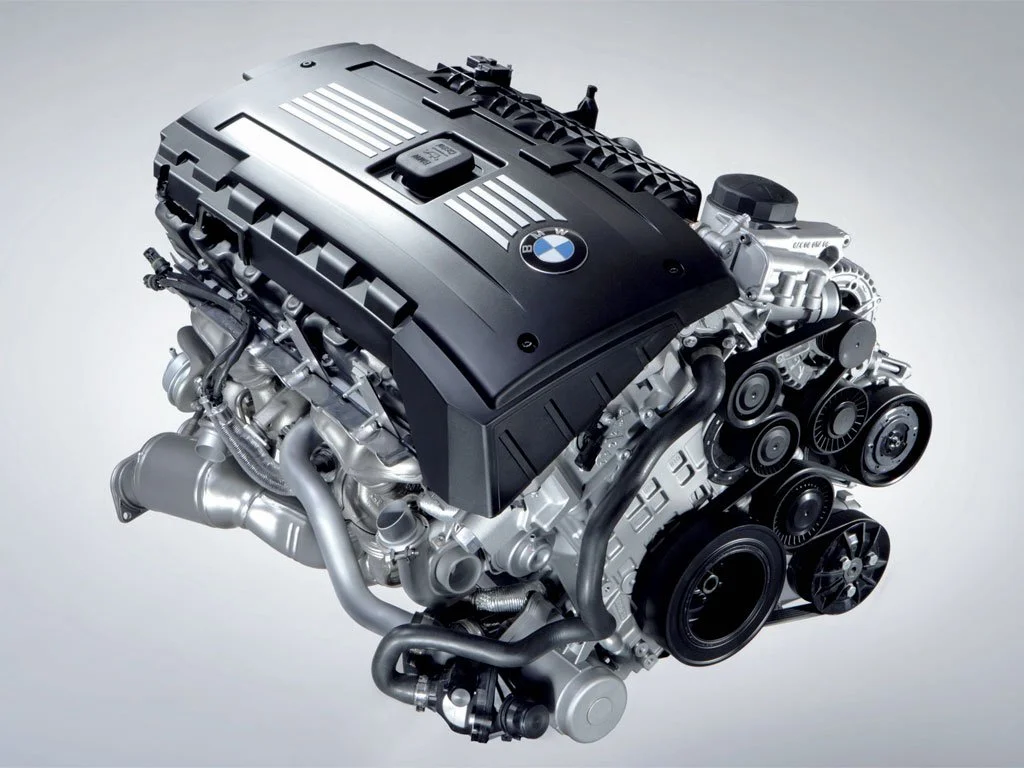

This page is scoped to BMW's 3.0-liter twin-turbo N54 engine, not to one chassis. Familiar U.S.-market applications include the E82/E88 135i, E82 1 Series M Coupe, E9x 335i/335is, E60/E61 535i, E71 X6 xDrive35i, E89 Z4 sDrive35i/sDrive35is and early F01/F02 740i/740Li applications. Engine-level values can span those cars; chassis hardware cannot, so it is intentionally excluded.
N54 oil-change torque specs
BMW's N54 oil-pan specification lists the M12x1.5 drain plug at 25 Nm / 18.4 ft-lb. The separate oil-filter specification lists the filter cap at the same 25 Nm / 18.4 ft-lb.
| Component | Torque | Source |
|---|---|---|
| Oil drain plug, M12x1.5 | 25 Nm / 18.4 ft-lb | BMW TIS-derived N54 oil-pan specification |
| Oil-filter cap | 25 Nm / 18.4 ft-lb | BMW TIS-derived N54 oil-filter specification |
N54 spark-plug torque
BMW's N54 spark-plug tool documentation specifies a 23 Nm / 17.0 ft-lb torque limiter. See the BMW TIS-derived N54 spark-plug documentation.
For a stock-replacement service, Turner's Bosch ZGR6STE2 N54 spark-plug set is specifically cataloged for N54 applications including the E9x 335i/335xi, E60 535i/535xi and E89 Z4 sDrive35i/sDrive35is. Modified engines may require a different plug or gap.
N54 valve-cover torque specs
The N54 plastic valve cover incorporates crankcase-ventilation hardware and is a familiar source of oil and vacuum leaks. BMW specifies only 8.5 Nm / 75.2 in-lb for the M6 cover fasteners.
| Valve-cover-area component | Torque | Notes |
|---|---|---|
| Cylinder-head / valve-cover bolts, M6 | 8.5 Nm / 75.2 in-lb | N54 specification. |
| Metal bracket to cylinder head, M6x16 | 8 Nm / 70.8 in-lb | N54 specification. |
| Lug to cylinder head, M8x20 | 19 Nm / 14.0 ft-lb | N54 specification. |
| Ignition-coil cover to cylinder-head cover, M6x20 | 4 Nm / 35.4 in-lb | N54 specification. |
Source: BMW TIS-derived N54 cylinder-head-cover specification. If the cover itself is cracked or warped, Turner's N54 valve-cover upgrade kit is explicitly listed for the N54 3.0L and includes the cover, gasket, hardware, blow-by hose and upgraded PCV component. Confirm fitment with the vehicle selector.
N54 oil-filter-housing and turbo oil-line torque specs
The oil-filter-housing gasket is a high-value N54 maintenance job because leakage can contaminate the accessory-belt area. FCP Euro's N52/N54 oil-filter-housing procedure also cautions against overtightening the cast-aluminum components.
| Component | Torque | Notes |
|---|---|---|
| Oil-filter cap | 25 Nm / 18.4 ft-lb | N54 specification. |
| Oil-filter housing to cylinder head, M8 | 22 Nm / 16.2 ft-lb | M8x78, M8x48 and M8x28 housing bolts. |
| Oil/water heat exchanger, M8x20 | 16 Nm / 11.8 ft-lb | N54 specification. |
| Oil feed to crankcase, M8x35 | 20 Nm / 14.8 ft-lb | N54 specification. |
| Turbo oil-pressure line to turbo, M6x10 | 8 Nm / 70.8 in-lb | N54 specification. |
| Turbo oil-pressure line to crankcase, M8x12 | 20 Nm / 14.8 ft-lb | N54 specification. |
| Turbo oil-return line to turbo, M6x14 | 8 Nm / 70.8 in-lb | N54 specification. |
| Turbo oil-return line to crankcase, M6x10 | 8 Nm / 70.8 in-lb | N54 specification. |
Source: BMW TIS-derived N54 oil-filter and oil-line specification. Turner's N54/N55 oil-filter-housing gasket kit includes both housing gaskets plus associated hardware and is explicitly listed for N54 applications including the 135i, 1M, 335i/335is, 535i, 740i and Z4 sDrive35i/sDrive35is.
N54 intake-manifold torque
BMW specifies 15 Nm / 11.1 ft-lb for both the N54 M7x50 intake-manifold fasteners and AM7 hex nuts. Source: BMW TIS-derived N54 intake-manifold specification.
N54 direct-injection fuel-system torque specs
High-pressure fuel work requires more than a torque value. BMW specifies connection order, line positioning and sealing precautions. Safely depressurize the system and use the complete applicable repair procedure.
| Fuel-system component | Torque | Notes |
|---|---|---|
| High-pressure rail to cylinder head, M7x16 | 13 Nm / 9.6 ft-lb, tolerance ±2 Nm / ±1.5 ft-lb | N54/N53. |
| High-pressure line to cylinder head, M7x16 | 13 Nm / 9.6 ft-lb, tolerance ±2 Nm / ±1.5 ft-lb | N54/N53. |
| Injector holding-down element, M7x20 | 13 Nm / 9.6 ft-lb, tolerance ±2 Nm / ±1.5 ft-lb | N54/N53; follow injector sealing procedure. |
| Feed line to high-pressure pump, M14 | 30 Nm / 22.1 ft-lb | BMW identifies a special tightening torque. |
| High-pressure line, rail to pump, M14 | 30 Nm / 22.1 ft-lb, tolerance ±3 Nm / ±2.2 ft-lb | Follow complete connection procedure. |
| High-pressure lines, rail to injectors, M12 | 25 Nm / 18.4 ft-lb | Follow BMW tightening sequence. |
| Fuel-feed-line bolt, M8x17 | 10 Nm / 7.4 ft-lb + 90° ±15° | BMW specifies replacement. |
Source: BMW TIS-derived N54/N53 fuel-injection and high-pressure-line specification.
N54 oil-pan torque specs and aluminum bolts
The N54 oil pan is a strong example of why bolt dimensions matter. BMW specifies replacement aluminum bolts and different angle stages depending on bolt length.
| Oil-pan fastener | Torque | Hardware note |
|---|---|---|
| M8x26 oil-pan bolts | 8 Nm / 70.8 in-lb + 90° | Aluminum bolts marked with blue paint; replace. |
| M8x92 / M8x112 oil-pan bolts | 8 Nm / 70.8 in-lb + 180° | Aluminum bolts marked with blue paint; replace. |
| M6x20 oil-deflector fasteners | 4 Nm / 35.4 in-lb + 90° | Aluminum fasteners; replace. |
| M12x1.5 oil drain plug | 25 Nm / 18.4 ft-lb | N54 specification. |
Source: BMW TIS-derived N54 oil-pan specification. A torque-plus-angle procedure is not interchangeable with a higher guessed torque value.
Frequently asked questions
What is the BMW N54 spark-plug torque?
23 Nm / 17.0 ft-lb.
What is the N54 valve-cover bolt torque?
The M6 cylinder-head-cover fasteners are 8.5 Nm / 75.2 in-lb.
What is the N54 oil drain-plug torque?
The M12x1.5 drain plug is 25 Nm / 18.4 ft-lb.
What is the N54 oil-filter-cap torque?
25 Nm / 18.4 ft-lb.
What is the N54 oil-filter-housing torque?
Housing to cylinder head is 22 Nm / 16.2 ft-lb; the oil/water heat exchanger to housing is 16 Nm / 11.8 ft-lb.
What is the N54 intake-manifold torque?
15 Nm / 11.1 ft-lb for the cited M7x50 fasteners and AM7 nuts.
Can N54 aluminum oil-pan bolts be reused?
BMW explicitly specifies replacement. M8x26 bolts use 8 Nm / 70.8 in-lb + 90°; M8x92/M8x112 bolts use 8 Nm / 70.8 in-lb + 180°.
What is the N54 high-pressure fuel-line torque?
The M14 rail-to-pump line is 30 Nm / 22.1 ft-lb, tolerance ±3 Nm / ±2.2 ft-lb; M12 rail-to-injector lines are 25 Nm / 18.4 ft-lb. Use the complete fuel-system procedure.
Sources and further reading
- BMW TIS-derived N54 cylinder-head-cover specifications
- BMW TIS-derived N54 spark-plug documentation
- BMW TIS-derived N54 oil-filter and oil-line specifications
- BMW TIS-derived N54 intake-manifold specifications
- BMW TIS-derived N54/N53 fuel-system specifications
- BMW TIS-derived N54 oil-pan specifications
- FCP Euro: N52/N54 oil-filter-housing gasket replacement
Last note: torque specifications are only one part of a repair. Verify the exact application, use the complete repair instructions, replace single-use hardware where required and stop if the hardware in front of you does not match the cited specification.
