BMW M50 Torque Specs: E36 & E34 DIY Engine Reference

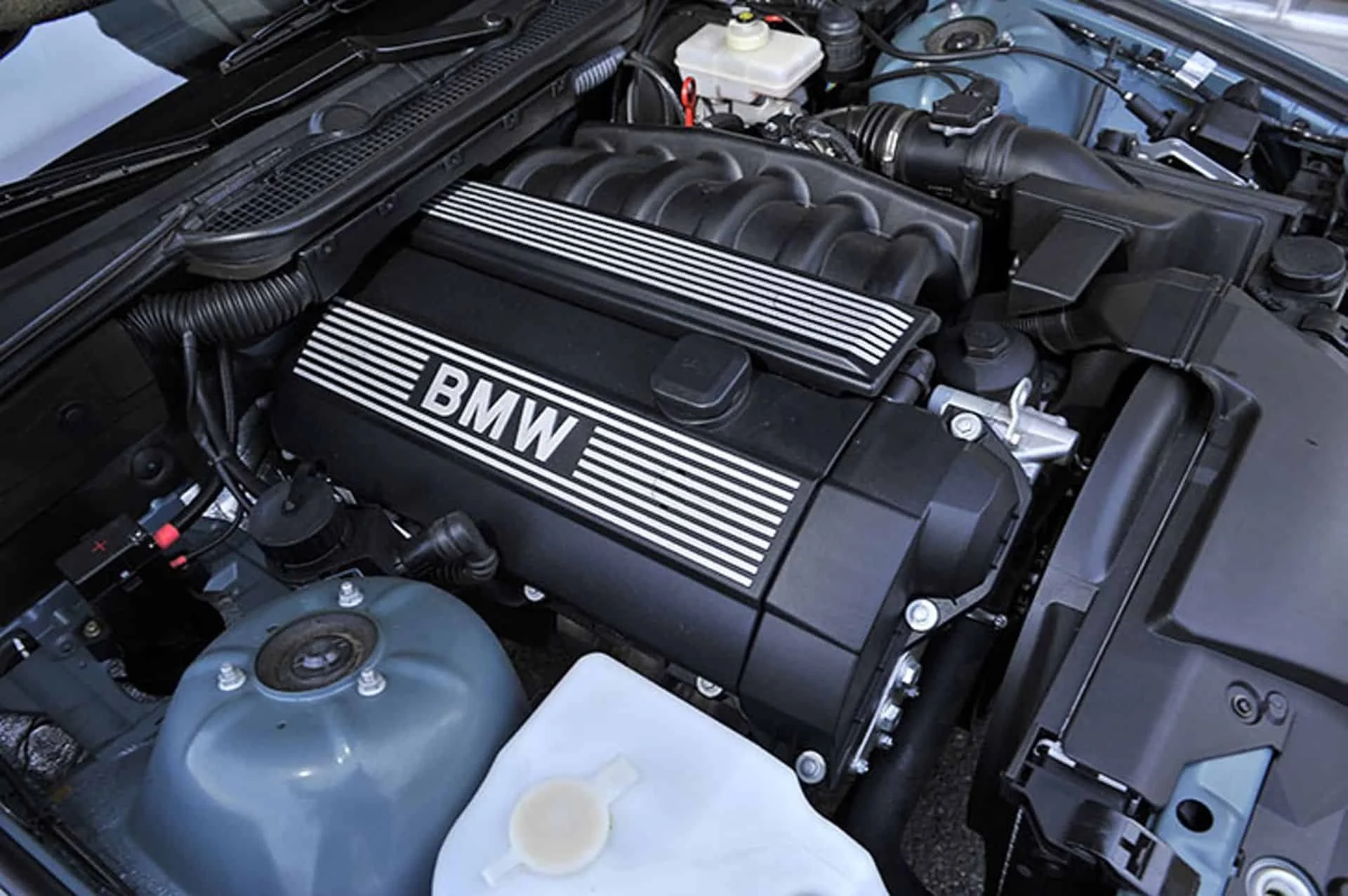

The BMW M50 powers popular early E36 and late E34 models, but a one-size-fits-all torque chart can be misleading. BMW's tightening tables distinguish fastener sizes, and VANOS-equipped M50 engines have hardware absent from earlier non-VANOS versions.

Scope: BMW M50 and single-VANOS M50TU engine service in E36 320i/325i-family and E34 520i/525i-family applications. This is an engine reference, not a chassis torque chart. Match the exact engine, model-market application and installed hardware. VANOS specifications are only for M50/VANOS.

Technical disclaimer: Department69 cross-referenced these specifications against BMW TIS-derived tightening tables and service information. This independent reference is not a substitute for the complete BMW repair procedure. Confirm engine variant, fastener size and grade, component, thread condition, replacement-hardware requirement and repair sequence before tightening anything. If the hardware in front of you does not match the cited application, stop and verify the exact procedure. Work on your car at your own risk.

Affiliate disclosure: This article contains affiliate links. If you purchase through them, Department69 may earn a commission at no additional cost to you.

BMW M50 torque specs: quick-reference table

Component	Torque	Application and source
Cylinder-head bolts, M10	30 Nm / 22.1 ft-lb + 90° + 90°	M50; new bolts, washed and oiled; BMW source
Cylinder-head cover, M6	10 Nm / 88.5 in-lb	M6 hardware; BMW source
Cylinder-head cover, M7	15 Nm / 11.1 ft-lb	M7 hardware; BMW source
Intake manifold to head, M8	22 Nm / 16.2 ft-lb	M8 hardware; BMW source
Intake manifold to head, M7	15 Nm / 11.1 ft-lb	M7 hardware; BMW source
Intake manifold to head, M6	10 Nm / 88.5 in-lb	M6 hardware; BMW source
Spark plugs, BMW torque-limiter tool	30 Nm / 22.1 ft-lb	M50 listed in tool documentation; BMW source
VANOS solenoid to housing	30 Nm / 22.1 ft-lb	M50/VANOS only; BMW source
VANOS banjo bolt, M14x1.5	32 Nm / 23.6 ft-lb	M50/VANOS only; BMW source
VANOS hydraulic line to oil-filter carrier	32 Nm / 23.6 ft-lb	M50/VANOS only; BMW source
Oil drain plug, M12x1.5	25 Nm / 18.4 ft-lb	Only for M12x1.5 installed hardware; BMW source
Oil pan to block, M6 grade 8.8	10 Nm / 88.5 in-lb	Match size and grade; BMW source

M50 cylinder-head bolts

BMW explicitly includes M50 in its M10 cast-iron-block head-bolt row. The procedure is 30 Nm / 22.1 ft-lb + 90° + 90°. BMW specifies replacement bolts, washed and oiled. Both angle stages matter. See the BMW cylinder-head tightening table.

M50 valve-cover torque

The E36 M50 table lists 10 Nm / 88.5 in-lb for M6 and 15 Nm / 11.1 ft-lb for M7 cover hardware. These are general rows, so verify the fastener size rather than assuming every cover fastener is identical. BMW cover tightening table.

For single-VANOS M50 applications, Turner lists a valve-cover gasket set for 1993-1995 E36 325i/325is/325ic and E34 525i. Do not assume this fits an earlier non-VANOS M50.

M50 intake-manifold torque

BMW's E36 M50 intake table lists manifold-to-head hardware at 22 Nm / 16.2 ft-lb for M8, 15 Nm / 11.1 ft-lb for M7 and 10 Nm / 88.5 in-lb for M6. Use the value for the actual fastener. BMW intake tightening table.

For manifold removal, Turner lists an Elring intake-manifold gasket, BMW part 11611717259 for M50-powered E36 325i and E34 525i applications. Check your VIN before ordering.

M50 spark-plug torque

BMW's spark-plug special-tool documentation explicitly includes M50 among engines using torque limiter 12 1 200, rated 30 Nm / 22.1 ft-lb. Verify the plug and installation procedure before tightening. BMW M50-inclusive torque-limiter documentation.

M50 VANOS torque specs

Only for M50/VANOS, BMW's broader VANOS tightening table lists solenoid-to-housing 30 Nm / 22.1 ft-lb, M14x1.5 banjo bolt to the adjustment unit 32 Nm / 23.6 ft-lb, and hydraulic line at the oil-filter carrier 32 Nm / 23.6 ft-lb. BMW variable-camshaft-control table.

Source context: The VANOS page appears within an S50 manual hierarchy, but the relevant rows explicitly name M50/VANOS. Do not apply these values to non-VANOS engines.

M50 oil-pan and drain-plug torque

BMW's E36 M50 oil-pan table lists multiple drain-plug sizes. For M12x1.5, the value is 25 Nm / 18.4 ft-lb. Oil-pan-to-block M6 grade 8.8 hardware is 10 Nm / 88.5 in-lb. Verify thread size and fastener grade. BMW M50 oil-pan table.

For a reseal, Turner lists a Genuine BMW oil-pan gasket, part 11131437237 for M50 applications including E36 325i and E34 525i. Confirm fitment before purchase.

Why some values are omitted

Flywheel torque is intentionally omitted because the available reader-facing manual-flywheel rows do not cleanly identify the M50 application. A page located inside an M50 manual is not, by itself, enough to assign a value from another engine family.

Frequently asked questions

What is the BMW M50 head-bolt torque?

For the cited M10 M50 bolts: 30 Nm / 22.1 ft-lb + 90° + 90°, with new bolts washed and oiled. BMW source.

What is the M50 valve-cover torque?

10 Nm / 88.5 in-lb for M6 or 15 Nm / 11.1 ft-lb for M7. Match hardware. BMW source.

What is the M50 intake-manifold torque?

22 Nm / 16.2 ft-lb for M8, 15 Nm / 11.1 ft-lb for M7 or 10 Nm / 88.5 in-lb for M6. BMW source.

What is the M50 spark-plug torque?

BMW lists the M50 with a 30 Nm / 22.1 ft-lb torque-limiter tool. BMW source.

What is the M50 VANOS solenoid torque?

For M50/VANOS, 30 Nm / 22.1 ft-lb. BMW source.

What is the M50 oil drain-plug torque?

For the M12x1.5 plug, 25 Nm / 18.4 ft-lb. Identify the plug first. BMW source.

Sources and further reading

• M50 head-bolt table
• M50 cylinder-head-cover table
• M50 intake-manifold table
• M50 spark-plug torque-limiter documentation
• M50/VANOS application table
• M50 oil-pan table

Final reminder: A torque chart is not a complete repair procedure. If your fastener, hardware, engine variant or application differs, consult the complete BMW procedure before proceeding.
